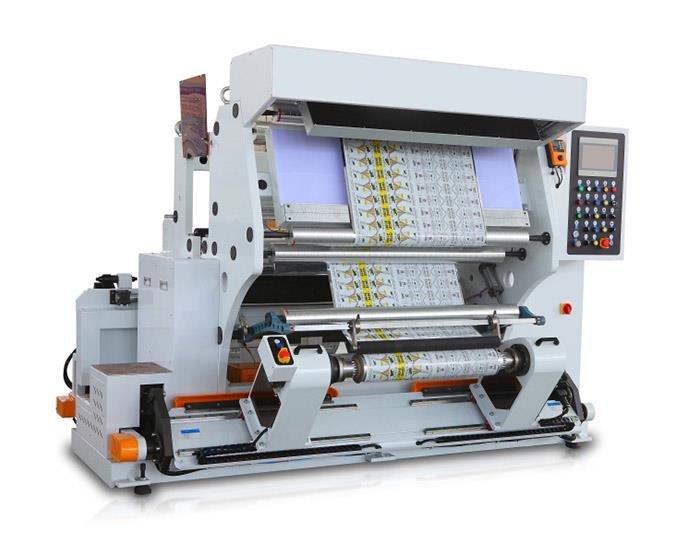

Jumbo Roll Inspection Rewind Machine for Detecting Printing
Model: JRRMDP01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Test and Measuring Equipment
Characteristics
Film quality controal with carema and picture record on the inspection machine, suitable for plastic film and composite film, the machine can operate in both directions.
Specifications
Description
Features
1. Rewinding method - Shaft-free receiving frame, single-sided cylinder clamp, equipped with mechanical chuck. The winding width is adjusted by manual use of the hand lever and the rack, and the hydraulic up and down swing mechanism is used to achieve automatic winding to reduce labor intensity.
2. Rewinding drive - The servo motor is driven independently, and the arc tooth synchronous belt pulley transmits torque.
3. Engineers can go abroad
Parameter
| Unwinding Diameter | Max Ø800mm |
| Rewind Diameter | Max Ø800mm |
| Max Working Width | 1300mm |
| Unwind Core Diameter | Ø76mm (3") |
| Rewind Core Diameter | Ø76mm (3") |
| Mechanical Speed | Max 300m/Min (Depending On Working Conditions) |
| Material Thickness Range | 0.012mm-0.15mm |
| Traction Motor | 1 Set 3 Kw |
| Rewindingmotor | 1 Set 5 Kw |
| Unwinding Motor | 1 Set 5 Kw |
| Total Energy Consumption | ≈15 Kw |
| Pneumatic Pressure | 0.6 Mpa |
| Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
| Guiding Accuracy | ±0.3mm |
| Web Guiding Movement Range | ±100mm |
| Machine Dimension | L3000*W2300*H2300 |
| Weight | 4120 Kg |
