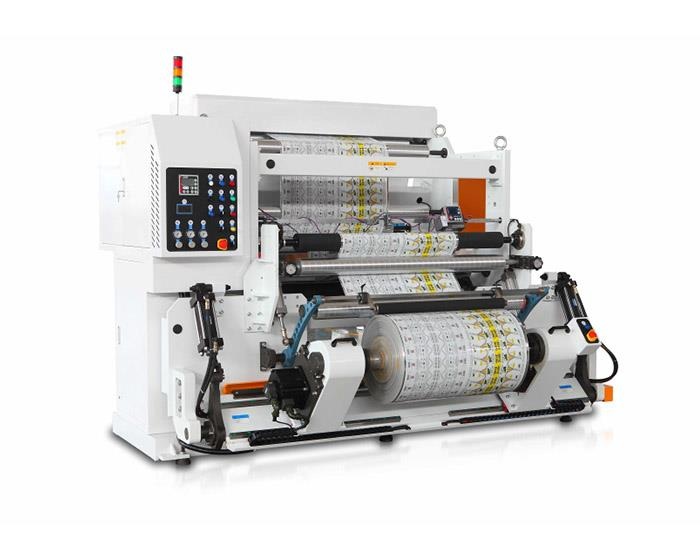

Reversible Rewinding Machine
Model: RRM01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines
Characteristics
Large rewinding inspection machine, suitable for rewinding and inspection of PET, BOPP, PVC, composite materials and label reel materials, mechanical speed 300m/min, two-way operation, winding and unwinding diameter are 800mm.
Specifications
Description
Features
1. Unwinding drive- The servo motor is driven independently, and the arc tooth synchronous belt pulley transmits torque. The arc tooth synchronous belt pulley has low noise transmission, large transmission torque and low power loss. The unwinding station can be used as a winding station. During the operation of the equipment, the direction of the rewinding and unwinding is converted into one-button control.
The forward and reverse discharge directions can be arbitrarily changed according to the needs of the product.
2. Rewinding drive - The servo motor is driven independently, and the arc tooth synchronous belt pulley transmits torque.
Parameter
| Unwinding Diameter | Max Ø800mm |
| Rewind Diameter | Max Ø800mm |
| Max Working Width | 1300mm |
| Unwind Core Diameter | Ø76mm (3") |
| Rewind Core Diameter | Ø76mm (3") |
| Mechanical Speed | Max 300m/Min (Depending On Working Conditions) |
| Material Thickness Range | 0.012mm-0.15mm |
| Traction Motor | 1 Set 3 Kw |
| Rewindingmotor | 1 Set 5 Kw |
| Unwinding Motor | 1 Set 5 Kw |
| Total Energy Consumption | ≈15 Kw |
| Pneumatic Pressure | 0.6 Mpa |
| Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
| Guiding Accuracy | ±0.3mm |
| Web Guiding Movement Range | ±100mm |
| Machine Dimension | L3000*W2300*H2300 |
| Weight | 4120 Kg |
