Fully automatic vertical packaging machine，पूरी तरह से स्वचालित ऊर्ध्वाधर पैकेजिंग मशीन

Enlarge

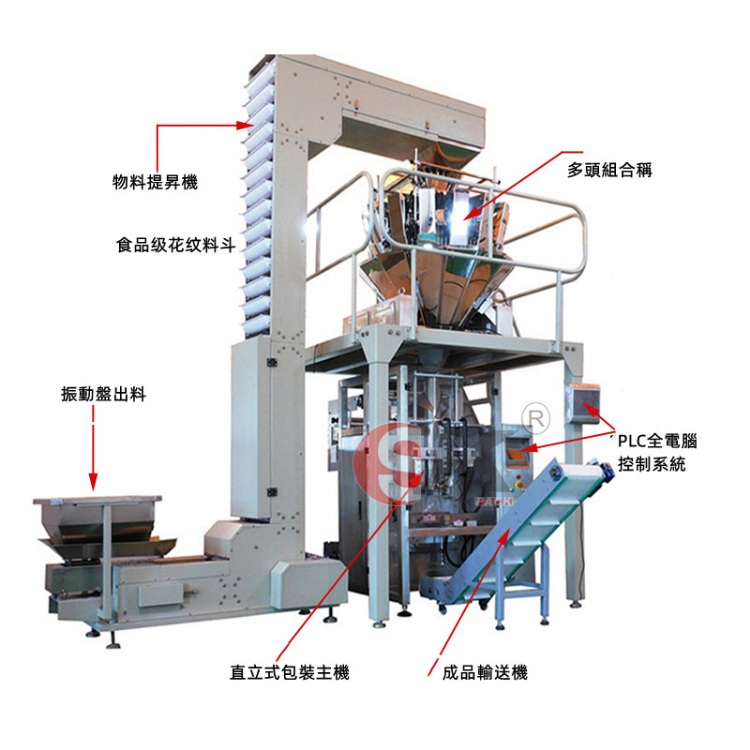

Fully automatic vertical packaging machine，पूरी तरह से स्वचालित ऊर्ध्वाधर पैकेजिंग मशीन

Model: ST-420

Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Automatic Weighing & Filling Machines

Online Inquiry

Characteristics

Machine features:
1: The weighing hopper can be loaded sequentially to prevent obstruction;
2: LCD touch screen with multiple languages that can be converted to each other, easy to operate;
3: The lighting time of the display backlight can be manually adjusted;
4: Pre-store 99 sets of product parameters

Specifications

ST-420 technical parameters
Maximum envelope width: 420mm
Bag making size: Length 80-300
Width 20-200
Air consumption 6-8kgf/cm2
Horizontal sealing knife holder: upper knife sealing 2.5mm
Knife sealing: 1.0mm
Single machine speed: 30-80WPM
Power requirements: 220V, 50~60Hz, 3.0KW
The technical parameters of Shidou Combination Scale are as follows:
Weighing range: 15～500g
Accuracy level: X (0.5) level
Maximum speed: 70WPM
Power requirements: 220V, 50~60Hz, 1.5KW
Hopper capacity: 1.3L (Double Doors)
Display: 10.4-inch color touch screen
Overall dimensions: 1436*1086*1258mm
