Online Analysis System



Model: Type 8905

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems



Online Inquiry





Characteristics

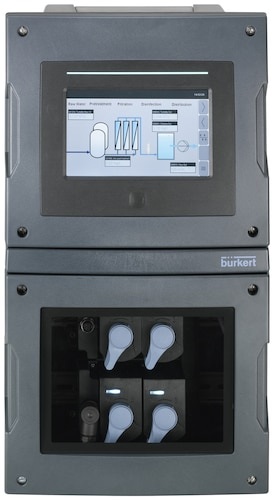

Type 8905 Online Analysis System is a compact and modular system for monitoring all important water parameters on one platform.

It is a multichannel measuring system for the Bürkert sensor cubes as well as other electronic modules from the EDIP platform.

The efficient device integration platform (EDIP) allows a high flexibility by using modularity in the hardware as well as in the software of the system.

The following parameters can be integrated into an online analysis system:
pH, chlorine/chlorine dioxide, conductivity, ORP, turbidity, temperature. A modular system concept allows the measuring system to be assembled according to customer requirements and enables simple installation and start-up, as well as operation and maintenance.

For maintenance, sensors can be removed without tools, while the remaining sensors continue to measure.

The sensors are operated via an integrated 7" touch display or Bürkert Communicator.

In addition to the display and storage of analysis parameters, other functions are possible, for example:
programming of simple control algorithms using f(x), interventions in the process via analog and digital inputs and outputs, performing sensor calibrations.

Type 8905 is available as a compact system in one housing, as well as a customised system.

For a system configuration please contact Burkert Taiwan Ltd.

■ For analysis applications for drinking water and fresh water in industrial processes
■ Prepared for fielbus connectivity and remote access
■ MEMS technologies allows minimal footprint and minimum sample water demand
■ Modular sensor and electronic system:
1、up to 6 measurements in one housing
2、up to 30 analysis sensor cubes in one Bürkert system bus (büS)
