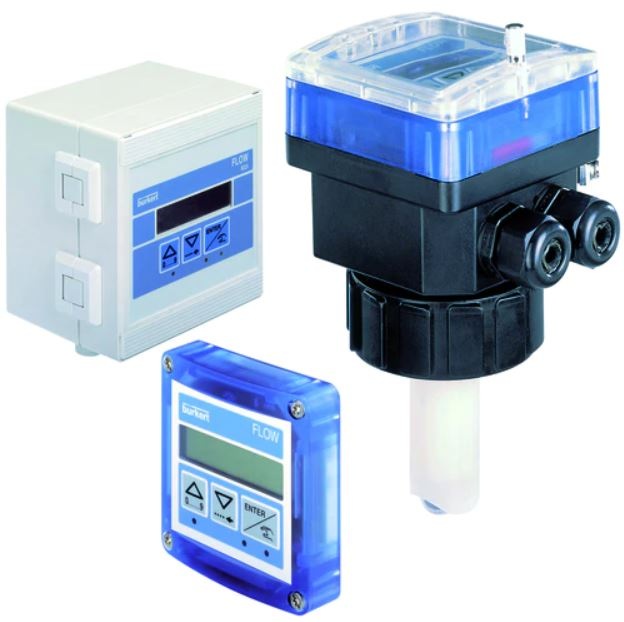

Insertion flowmeter or batch controller with paddle wheel and flow transmitter or remote batch controller

Enlarge

Insertion flowmeter or batch controller with paddle wheel and flow transmitter or remote batch controller

Model: Type 8025

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Online Inquiry

Characteristics

The Type 8025 flowmeter or batch controller is specially designed for use in neutral, slightly aggressive, solid-free liquids.

→ Type 8025 flowmeter is offered in different versions.

■ The compact flowmeter with paddle wheel sensor is available in two versions:
standard signal output or – battery powered indicator/totalizer version without output.

■ The remote transmitter is available in two versions:
Universal transmitter for control cabinet or wall mounting, which can be connected to other flow sensors; sensors with open collector output, reed relay output, TTL, CMOS or coil can be operated by this transmitter.

■ Transmitter, for control cabinet or wall mounting:
standard signal input for combination with the Bürkert Type 8020/8030/SE30+S077 flowmeters “Low Power” version.

→ Type 8025 batch controller is also available in various versions:

■ The compact batch controller with paddle wheel sensor

■ The remote batch controller for control cabinet or wall mounting for coupling to the Bürkert Type 8020/8030/8031/8041/SE30+S077 flowmeters or to other flow sensors; sensors with open collector output, reed relay output, TTL, CMOS or coil can be operated by this batch controller.

■ Up to PN10, size of measuring tube: DN 06…DN 400
■ Display for indication of flow rate and volume with two totalizers or dosing
■ Automatic calibration using Teach-In
■ Inputs (with batch controller) and all outputs can be checked without the need for actual flow
■ Total and day counters for batch quantity and number of dosing, volume or mass counter indicator (with batch controller)
