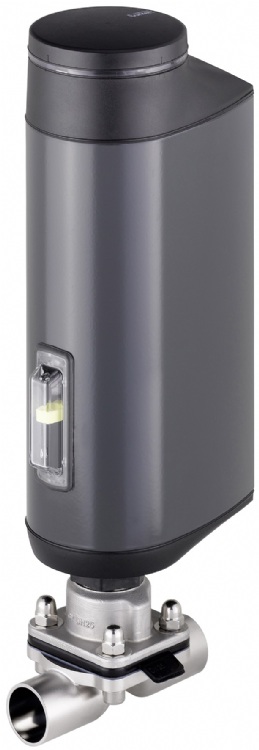

2/2 way diaphragm valve with electric linear actuator (ON/OFF) made of plastic (Type EVA)



Model: Type 3323

Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Sanitary Stainless Steel Tubes,Tube Fitting,Valves & Pumps



Online Inquiry





Characteristics



The externally controlled diaphragm valve Type 3323 consists of an electrically controlled linear actuator (open/close), of a diaphragm and a 2 way valve housing.

The electric actuator with recirculating ball screw ensures use under hygienic or aggressive environmental conditions.
The flow-favorable and dead space-free valve housings enable high flow values and a wide range of possible uses.

In the event of a power failure, the safety position is guaranteed by an optional energy storage device.
The position is displayed by means of a 360° LED light ring.

To protect the diaphragm the actuator has a drive force adjustment.
A correspondingly high IP protection IP65/IP67 ensures adequate splash protection.
In addition to a fast actuating speed of 1.5 to 4.5 seconds, the actuator is also equipped with a mechanical position indicator and a corresponding explosion protection ATEX/II 3G Ex ec IIC T4 Gc/II 3D Ex tc IIIC T135 °C Dc.

■ Safety position through energy storage
■ Adjustable driving force
■ Diagnostic functions and fieldbus connection
■ Produktberührte Oberflächen von Ra ≤ 0.38 µm…1.6 µm (wahlweise elektropoliert)
■ Available in connection sizes DN 06…DN 40
