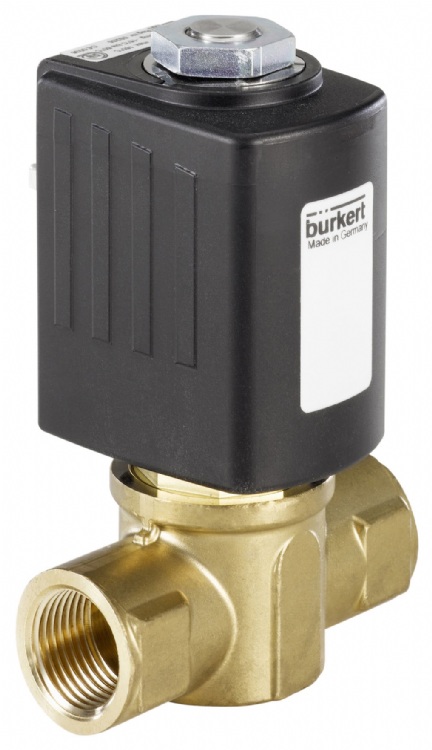

Direct-acting 2/2 way plunger valve
Model: Type 6027
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Solenoid Valves
Characteristics
Valve 6027 is a direct-acting plunger valve.
The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness.
Various seal material combinations are available depending on the application.
The coils are moulded with chemically resistant epoxy.
An optional sliding ring bearing increases the service life with dry gases.
Special seal technology is used for high-pressure applications.
In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65.
Stainless steel valves satisfy NEMA 4X.
■ Direct-acting, powerful valve with diameter of up to DN13
■ Vibration-proof, bolted coil system
■ Increased leak-tightness with welded plunger guide tube
■ Explosion proof versions
■ High pressure variants for gases and liquids
