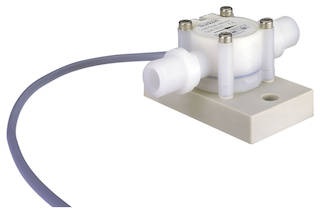

Burkert Type 8031 - Flow Sensor for low-flow measurement
Model: Type 8031
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
The compact low-flow sensor Type 8031 with paddle-wheel and Hall sensor is specially
designed for use in aggressive and solid-free liquids.
The particular cost attractive measuring principle is based on a local flow velocity measurement.
The sensor produces a flow proportional frequency signal which can easily be transmitted and processed.
We recommend here particularly the connection to the Bürkert Universal transmitter Type 8025 (see separate data sheet).
■ Cost attractive solution for low-flow rates and solid-free liquids
■ Wetted parts made of ECTFE, sapphire, coated stainless steel, FKM or EPDM for use in aggressive liquids
■ 3-wire system with paddle-wheel and Hall sensor up to 80 °C, 6 bar
■ Frequency output proportional to the flow rate, PLC-compatible
Specifications
Downloads 下載完整規格表
Low flow sensor：http://www.burkert.com/en/Media/plm/DTS/DS/DS8031-Lowflow-EU-EN.pdf
Low Flow Batch Control Sensor：http://www.burkert.com/en/Media/plm/DTS/DS/DS8031-Lowflow-US-EN.pdf
More: https://www.burkert.com.cn/cn/type/8031
