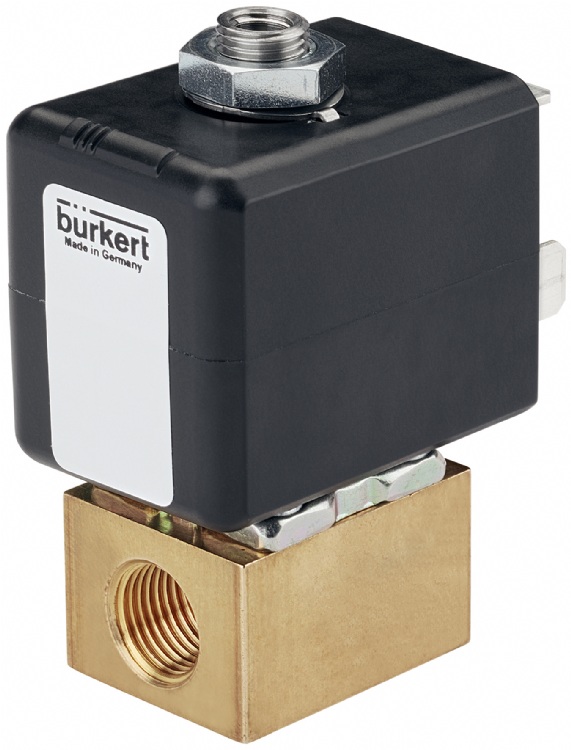

Direct-acting 3/2-way plunger valve



Model: Type 7012

Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Solenoid Valves



Online Inquiry





Characteristics



The 7012 valve is a direct-acting plunger valve.

The stopper and the core guide tube are welded together to increase pressure resistance and leak-tightness.
Various housing and seal material combinations are available depending on the actual application.

A Bürkert-specific flange variant (SFB) enables the space-saving arrangement of valves on a multiple manifold.
The range is supplemented by explosion-proof variants.
Push-in fittings can be selected for a flexible hose connection.
A banjo fitting with banjo bolt is the ideal solution for easy direct mounting on a pneumatic actuator.

Optional manual override enables quick start-up and optimal maintenance.
In combination with a plug to industry standard shape B or DIN EN 17301-803 shape C, the valves satisfy degree of protection IP65.

■ Direct-acting and compact small valve up to DN 1.6
■ Slipped over coil system
■ Banjo fitting for direct mounting on pneumatic valves
■ Simple and fast push-in, flange or manifold mounting
■ Explosion-proof variants
