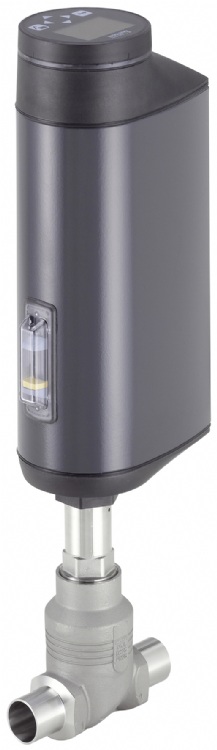

Electromotive 2 way globe control valve



Model: Type 3361

Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Valves



Online Inquiry





Characteristics



The innovative process controller Bürkert valve Type 3361 is the solution when it comes to demanding control tasks and operating conditions.

The electromotive actuator with ball screw positions the control cone with highest precision.

A unique feature is its high positioning speed of 6 mm/s, that reacts quasi delay-free to process signals, and can be varied according to customer demands.
Pressure variations or shocks in the medium aren´t transferred to the valve position.

Each flow optimized valve housing can be equipped with up to 5 different valve seats for a precise adaptation according to customer needs.
If necessary, the safety position can be approached by an optional energy storage in case of power failure.

Actuator and valve are adapted perfectly to each other with closed design and robust surface.
This ensures the hygienic requirements of a fast and residue-free cleaning.

Harsh environment are no problem for the Type 3361 because of the protection class IP65 / IP67 and its high impact and vibration resistance.

Unrivalled cycle life and sealing integrity is guaranteed by the proven self adjusting spindle packing with exchangeable V-seals.

The fieldbus suitable Type 3361 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.

■ High precise and fast flow control
■ Several Kvs value per port size due to removable valve seats
■ Weather, impact and vibration resistant design
■ Easy cleaning by its design according hygienic demands
■ Position controller and process controller available
