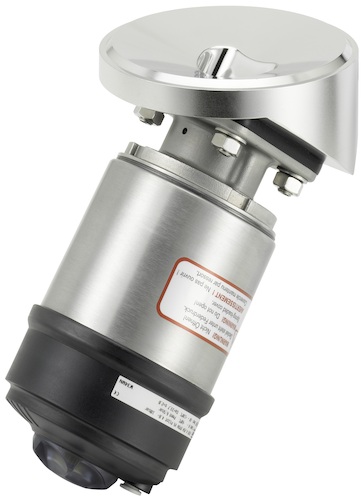

Tank bottom diaphragm valve with pneumatic actuator in stainless steel (Type ELEMENT) for decentralised automation
Model: Type 2105
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Sanitary Stainless Steel Tubes,Tube Fitting,Valves & Pumps
Characteristics
The externally controlled diaphragm valve Type 2105 consists of a pneumatically operated piston actuator, a diaphragm and a tank bottom valve body.
The proven and robust actuator with stainless steel housing ensures use in hygienic or aggressive ambient conditions.
The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses.
The valve body and the diaphragm are available in all common materials and variants.
The actuator has a compact, autoclavable design with a large stainless steel housing and gap-free seals.
The integration of automation units Type ELEMENT is possible in all configuration levels (can be retrofitted); a fieldbus interface can also be integrated.
An explosion-proof ATEX / IECEx device variant is available.
It is a compact, smooth-surfaced and highly integrated system consisting of a valve and an automation unit with integrated pilot air ducts (no intake of ambient air).
The add-on body is optionally available in plastic or stainless steel (can be rotated 360°).
The valve offers the degrees of protection IP65/67 and NEMA Type 4X and displays high chemical resistance.
■ Valve body and diaphragm are available in various materials and variants
■ Product wetted surfaces in Ra ≤ 0.38 µm...1.6 µm (optionally electropolished)
■ Available in all common connection sizes and variants
Specifications
Downloads
http://www.burkert.com/en/type/2105
Success Story
Unither is a world leader in the manufacture of formulations for the pharmaceutical industry. Its plant at Gannat, in the Department of Allier, is a specialised production site for manufacture of pharmaceuticals. The company wished to modernise its production equipment and therefore took the decision to fully automate the production line, from the raw materials preparation tank right through to the packaging machine. The new installation is equipped with ELEMENT diaphragm valves from Bürkert, offering a high degree of modularity with embedded diagnostic tools guaranteeing maximum reliability and safety. Limit switch devices with AS-i communication are installed on each pneumatic valve.
