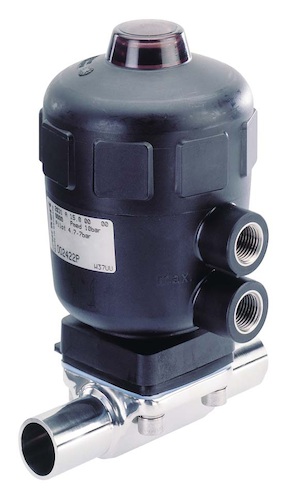

2/2-way diaphragm valve with pneumatic plastic actuator (Type CLASSIC)



Model: Type 2031

Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Sanitary Stainless Steel Tubes,Tube Fitting,Valves & Pumps



Online Inquiry





Characteristics



The externally controlled diaphragm valve Type 2031 consists of a pneumatically operated piston actuator, a diaphragm and a 2-way valve body.
The proven and robust actuator with a plastic housing ensures use in hygienic or aggressive ambient conditions.

The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses.
The valve body and the diaphragm are available in all common materials and variants.
The actuator has a compact, autoclavable design (PPS variant).

The integration of the automation units 8690/8697 is possible in all configuration levels (can be retrofitted).
An explosion-proof ATEX / IECEx device variant is available.
The add-on body is optionally available in plastic or stainless steel.
The actuator is equipped with an integrated, optical position indicator as standard, optionally a min./max. stroke limiter can be installed.

■ Valve body and diaphragm are available in various materials and variants
■ Product wetted surfaces in Ra ≤ 0.38...≤ 1.6 µm (optionally electropolished)
■ Available in all common connection sizes and variants
