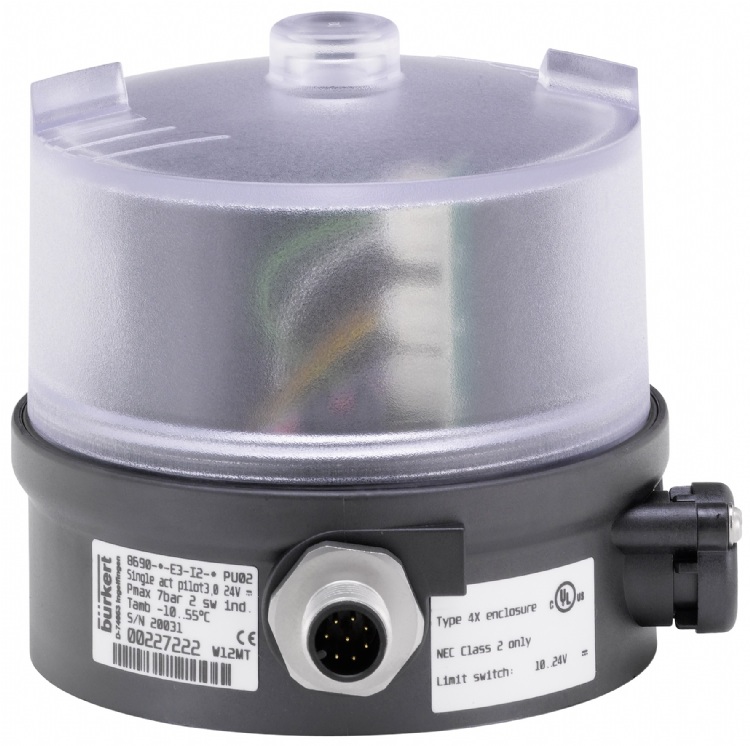

Pneumatic control for decentralised automation of ELEMENT process valves



Model: Type 8690

Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Sanitary Stainless Steel Tubes,Tube Fitting,Valves & Pumps



Online Inquiry





Characteristics



The pneumatic control unit Type 8690 is designed for decentralised automation of ELEMENT Type 21xx pneumatic process valves.

Mechanical or inductive limit switches register the valve position.

The integrated pilot valve controls single or double-acting actuators.

The design of the control unit and the actuator enables an internal control air routing without external tubings.
Besides the electrical position feedback, the status of the device is shown directly on the pneumatic control unit itself.

The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing, in food, beverage and pharmaceutical industries.

Focused on wash down applications, the IP protection of the housing is supported by a positive pressure inside the control head.
Combined with Bürkert ELEMENT actuators, the pneumatic actuating system enables spring chamber aeration that avoids actuator chamber contamination from the environment.

■ Compact design
■ Integrated pilot valve with manual override
■ Integrated control air routing in the actuator
■ Visual position indicator
■ With ATEX II cat. 3G/D and cat. 2D/G approval
