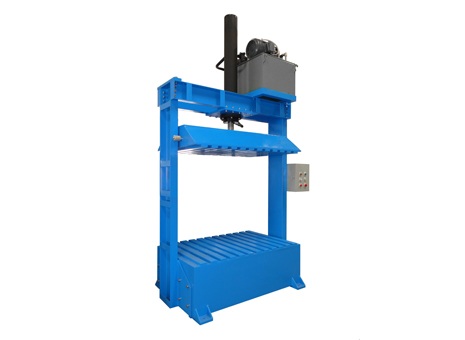

Hydraulic Bag Press
Model: SC-HBP
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Other Auxiliary Equipment
Characteristics
Hydraulic Cylinder
Hydraulic Power Unit
Platform for Stacking
Press Plate
Control Panel
Specifications
http://www.sanchyi.com/products-category1-1.php?id=39
| Hydraulic Baling Press(SC-HBP) | ||
| Model | SC-HBP30T | SC-HBP30P |
| Baling Type | Table Type | Pallet Type |
| Max. Pressure | 25 ton(245 kN) | |
| Max. Press Area | 1300 x 1100 mm | |
| Hydraulic Power Unit | 5 HP | |
| Hydraulic Cylinder Dia. | ø150 mm | |
| Hydraulic Cylinder Stroke | 1000 mm | 1500 mm |
| Max. Open Height | 1300 mm | 1800 mm |
| Min. Compression Height | 300 mm | 300 mm |
| Height Control | Adjustable by Limit Switch | |
| Baling Material | Plastic Strapping | |
| Dimension | L1850 x W1100 x H3700 mm | L1850 x W1100 x H4200 mm |
| ※All specifications are subject to change without notice. | ||
