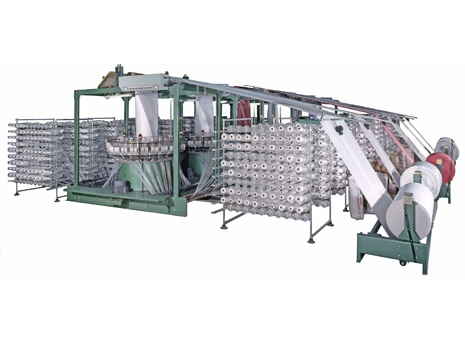

Circular Loom
Model: SC-CL
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Circular Looms
Characteristics
Control Panel
Creel Stands
Weaving Unit
Fabric Surface Winder
Warp Break Detecting Device
Weft Break Detecting Device
Loom Controller
Specifications
http://www.sanchyi.com/products-category1-1.php?id=9
| Circular Loom(SC-CL) | ||||||
| Model | SC-CLM4 | SC-CL4 | SC-CLM6 | SC-CL6 | SC-CL8 | |
| Feature | Applicable Yarn | PP/HDPE Tapes(Flat Yarn) | ||||
| Double Flat Working Width | 250 - 450 mm | 350 - 800 mm | 450 - 800 mm | 800 - 1200 mm | 1600 - 2100 mm | |
| Tapes No. | 400 | 720 pcs | 720 pcs | 1200 pcs | 2040 pcs | |
| Shuttles No. | 4 pcs | 4 pcs | 6 pcs | 6 pcs | 8 pcs | |
| Weft Insertion Rate | 600 ppm | 560 ppm | 840 ppm | 540 ppm | 600 ppm | |
| Weft Density | 8 - 12 pcs/in | 8 - 14 pcs/in | 8 - 14 pcs/in | 8 - 16 pcs/in | 8 - 16 pcs/in | |
| Drive Motor | 3 HP | 5 HP | 5 HP | 7.5 HP | 15 HP | |
| Shedding Type | Driven Indirectly with Rocking Lever by Cam | |||||
| Warp Bobbin | Inside Diameter | ø22 / ø35 mm | ||||
| Length | 228 / 230 mm | |||||
| Max. Diameter | ø140 mm | |||||
| Traverse Length | 203 / 200 mm | |||||
| Weft Bobbin | Inside Diameter | ø22 / ø35 mm | ||||
| Length | 228 / 230 mm | |||||
| Max. Diameter | ø100 mm | |||||
| Traverse Length | 203 / 200 mm | |||||
| Fabric Surface Winder | Type | Standard Width Winder for Tubular Fabric | ||||
| Double Width Winder for Central Slitting Fabric | ||||||
| Back to Back Winder for Double Slitting Fabric | ||||||
| Winding Motor | 7.5 kg-cm | 10 kg-cm | 10 kg-cm | 15 kg-cm | 20 kg-cm | |
| Max. Winding Roll Diameter | ø1200 mm | |||||
| ※All specifications are subject to change without notice. | ||||||
