Tandem Extrusion Coating Line

Enlarge

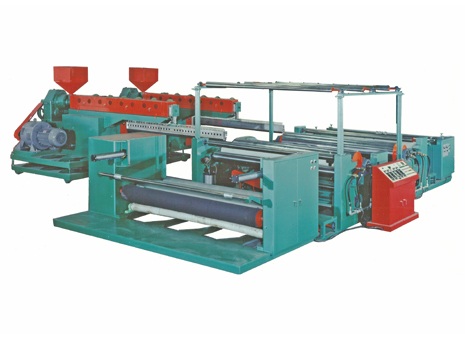

Tandem Extrusion Coating Line

Model: SC-DLM

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Laminating Machines

Online Inquiry

Characteristics

Control Panel
Extruder A
T-Die A
Extruder B
T-Die B
Unwinding unit
Lamination unit A
Lamination unit B
Edge Trimming Device
Winding unit
Edge Position Controller(E.P.C.)
Edge Collecting Winder

Specifications

http://www.sanchyi.com/products-category1-1.php?id=17

Tandem Extrusion Coating Line(SC-DLM)
Model		SC-DLM90-1500	SC-DLM100-2000	SC-DLM120-2850	SC-DLM150-4400
Feature	Applicable Material	PP(Polypropylene)/LDPE(Low Density Polyethylene)
	Substrate	PP(Polypropylene)/HDPE(High Density Polyethylene) Woven Fabric
	Max. Working Width	1300 mm	1800 mm	2600 mm	4000 mm
	Max. Extrusion Output	70 - 120 kg/hr x 2 sets	120 - 200 kg/hr x 2 sets	200 - 300 kg/hr x 2 sets	350 - 450 kg/hr x 2 sets
	Max. Operating Speed	50 - 70 m/min.	50 - 70 m/min.	50 - 90 m/min.	50 - 100 m/min.
Extruder x 2 sets	Screw Dia.	ø90 mm	ø100 mm	ø120 mm	ø150 mm
	Screw L/D	30:1
	Screw Material	SACM645 Alloy Steel with Nitriding and Polishing Treatment
	Barrel Material	SACM645 Alloy Steel with Nitriding and Honing Treatment
	Drive Motor	40 HP	50 HP	75 HP	125 HP
	Heating Capacity	30 kw	40 kw	54 kw	90 kw
	Thermo Control	5 points	6 points	6 points	8 points
	Barrel Cooling Blower	1/2 HP x 4 sets	1/2 HP x 5 sets	1/2 HP x 5 sets	1/2 HP x 7 sets
	Moving Carriage Motor	1 HP Brake Motor with Gear Reducer
T-Die x 2 sets	T-Die Material	SCM440 Alloy Steel with Grinding and Plating
	T-Die Length	1500 mm	2000 mm	2850 mm	4400 mm
	Heater Capacity	20 kw	25 kw	28 kw	65 kw
	Thermo Control	5 points	6 points	8 points	13 points
Unwinding Unit	Unwinding Roll Dia.	ø1200 mm	ø1200 mm	ø1200 mm	ø1200 mm
	Tension Control	Manual/Automatic Tension Control by Tension Controller with Load Cell and Pneumatic Braking
	Edge Position Control	1/2 HP Hydraulic Edge Guiding System
	Roll Mounting Type	Fabric Roll mounted on the Pneumatic Shafts and Safety Chucks
Lamination Unit x 2 sets	Drive Motor	5 HP	7.5 HP	10 HP	15 HP
	Chill Roller	ø500 x 1500 mm	ø500 x 2000 mm	ø500 x 2850 mm	ø500 x 4400 mm
	Silicone Pressure Roller	ø300 x 1500 mm	ø300 x 2000 mm	ø300 x 2850 mm	ø300 x 4400 mm
	Back-Up Cooling Roller	ø210 x 1500 mm	ø210 x 2000 mm	ø210 x 2850 mm	ø210 x 4400 mm
Edge Trimming Device	Drive Motor	2 HP
	Edge Trimming Slitter	1 set
	Edge Suction Blower	2 HP	2 HP	2 HP	2 HP
	Edge Collecting Motor	15 kg-cm x 2 sets
	Max. Collecting Size	ø660 x 350 mm
Winding Unit	Winding Type	Surface Friction Winding
	Drive Motor	5 HP	7.5 HP	10 HP	15 HP
	Winding Roll Dia.	ø1200 mm	ø1200 mm	ø1200 mm	ø1200 mm
※All specifications are subject to change without notice.
