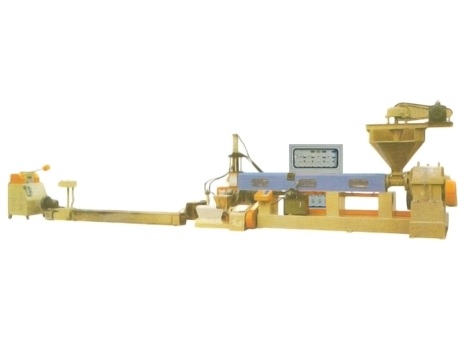

Plastic Waste Recycling and Pelletizing Machine
Model: SC-RP
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Recycling & Pelletizing Machines
Characteristics
Control Panel
Force Feeding Hopper
Main Extruder
Hydraulic Screen Changer A
Sub Extruder
Hydraulic Screen Changer B
Cooling Tank
Water Stop Blower
Pellet Cutter
Specifications
http://www.sanchyi.com/products-category1-1.php?id=19
| Plastic Waste Recycling and Pelletizing Machine(SC-RP) | |||||
| Model | SC-RP90 | SC-RP100 | SC-RP120 | SC-RP150 | |
| Feature | Applicable Material | PP/LLDPE/LDPE/HDPE | |||
| Max. Extrusion Output | 90 - 120 kg/hr | 100 - 150 kg/hr | 150 - 250 kg/hr | 250 - 300 kg/hr | |
| Main Extruder | Screw Dia. | ø90 mm | ø100 mm | ø120 mm | ø150 mm |
| Screw L/D | 28:1 | 28:1 | 30:1 | 32:1 | |
| Screw Material | SACM645 Alloy Steel with Nitriding and Polishing Treatment | ||||
| Barrel Material | SACM645 Alloy Steel with Nitriding and Honing Treatment | ||||
| Drive Motor | 30 HP | 40 HP | 60 HP | 75 HP | |
| Heater Capacity | 25 kw | 30 kw | 40 kw | 50 kw | |
| Thermo Control | 5 points | 6 points | 7 points | 8 points | |
| Force Feeding Hopper | 5 HP | 5 HP | 7.5 HP | 7.5 HP | |
| Hydraulic Screen Changer | 3 HP | 3 HP | 3 HP | 3 HP | |
| Sub Extruder | Screw Dia. | ø90 mm | ø100 mm | ø120 mm | ø150 mm |
| Screw L/D | 8:1 | 8:1 | 8:1 | 8:1 | |
| Drive Motor | 15 HP | 15 HP | 25 HP | 30 HP | |
| Heater Capacity | 9 kw | 9 kw | 9 kw | 12 kw | |
| Cooling Tank | Size | 2500 x 365 x 335 mm | 2500 x 365 x 335 mm | 3000 x 365 x 335 mm | 4500 x 365 x 335 mm |
| Water Stop Blower | 2 HP | 2 HP | 2 HP | 2 HP | |
| Pellet Cutter | Drive Motor | 3 HP | 3 HP | 5 HP | 7.5 HP |
| ※All specifications are subject to change without notice. | |||||
