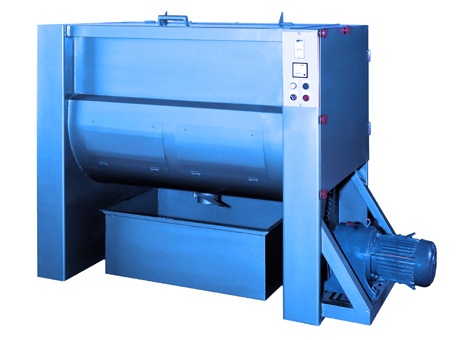

Horizontal Plastic Resin Mixer
Model: SC-MXR
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Mixers
Characteristics
Helical Ribbon
Gear Reducer Motor
Heating Device
Control Panel
Specifications
http://www.sanchyi.com/products-category1-1.php?id=20
Plastic Resin Mixer(SC-MXR) | ||
Model | SC-MXR300 | SC-MXR500 |
Applicable Material | Plastic Resin / Additive / Pigment | |
Max. Mixing Capacity | 300 kg | 500 kg |
Effective Loading Space | 600 L | 1000 L |
Drive Motor | 3 HP Gear Reducer Motor | 5 HP Gear Reducer Motor |
Heater Capacity | 8 kw | 12 kw |
Thermo Control | 1 point | 1 point |
Mixing Type | Helical Ribbon Mixing | |
Dimension | L2.1 x W1.1 x H1.5 m | L2.5 x W1.3 x H1.7 m |
Weight | 700 kg | 1100 kg |
All specifications are subject to change without notice |
