PP Woven Bag Manual Printing Machine

Enlarge

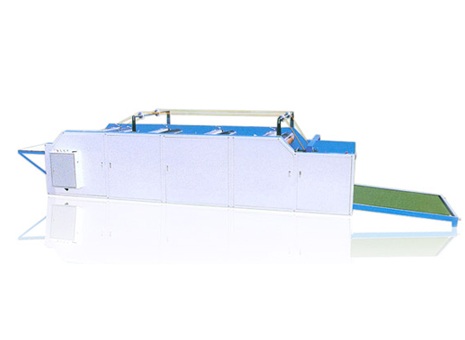

PP Woven Bag Manual Printing Machine

Model: SC-MPM

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Other Plastic Processing Machines

Characteristics

Feeding Unit
Printing Unit
Stacking & Conveyor Unit

Specifications

http://www.sanchyi.com/products-category1-1.php?id=25

Manual Printing Machine(SC-MPM)
Model	SC-MPM2C	SC-MPM3C	SC-MPM4C	SC-MPM5C
Color No.	2 colors	3 colors	4 colors	5 colors
Single Side Printing	Flexographic on Single Side
Woven Bag Width	400 - 800 mm
Woven Bag Length	600 - 1250 mm
Printing Area	900 x 960 mm
Accuracy	± 2 mm
Production Capacity	30 - 40 bags/min
Printing Position	Adjustable Horizontal and Vertical Position
Main Drive Motor	2 HP	3 HP	5 HP	5 HP
Air Compressor	2 HP	3 HP	3 HP	5 HP
Electric Consumption	3 kw	4 kw	6 kw	7 kw
Dimension	5300 x 1650 x 1120 mm	6345 x 1650 x 1120 mm	7390 x 1650 x 1120 mm	8345 x 1650 x 1120 mm
Weight	2000 kg	2800 kg	3600 kg	4400 kg
※All specifications are subject to change without notice.
