PP/HDPE Tape Extrusion Line

Enlarge

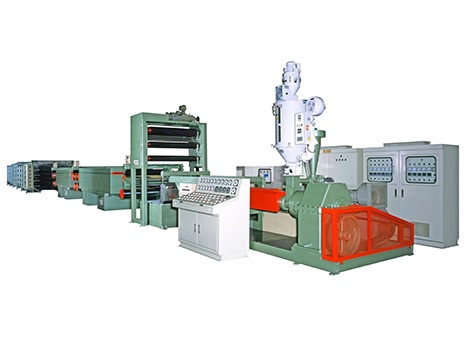

PP/HDPE Tape Extrusion Line

Model: SC-FY

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Flat Yarn Making Machines

Online Inquiry

Characteristics

Automatic Vacuum Loader
Hopper Dryer
Extruder
Screen Changer
T-Die
Control Panel
Cooling Device
Chiller
Take-up Unit
Slitting Unit
Hot Air Stretching Device
Take-Off Unit
Winding Unit
Waste Edge Recycling Unit
Waste Yarn Collector

Specifications

http://www.sanchyi.com/products-category1-1.php?id=10

PP/HDPE Tape Extrusion Line(SC-FY)
Model		SC-FY85-120	SC-FY90-160	SC-FY100-200
Feature	Applicable Material	PP(Polypropylene) / HDPE(High Density Polyethylene)
	Max. Extrusion Output	150 kg/hr	200 kg/hr	250 kg/hr
	Max. Operating speed	250 m/min
Extruder	Screw Dia.	ø85 mm	ø90 mm	ø100 mm
	Screw L/D	35:1
	Screw Material	SACM645 Alloy Steel with Nitriding and Polishing Treatment
	Barrel Material	SACM645 Alloy Steel with Nitriding and Honing Treatment
	Drive Motor	60 HP	75 HP	100 HP
	Heater Capacity	30 kw	40 kw	45 kw
	Thermo Control	5 points	6 points	6 points
	Barrel Cooling Blower	1/2 HP x 4 pcs	1/2 HP x 5 pcs	1/2 HP x 5 pcs
	Automatic Vacuum Loader	Blower:1 HP, Loading Capacity:450 kg/hr, Hopper Capacity:12 L
	Hopper Dryer	Hopper Capacity:300 L, Heater Capacity:11 kw, Blower:300 w
	Screen Changer	Automatic Screen Changer
T-Die	T-Die Material	SCM440 Alloy Steel with Grinding and Plating
	T-Die Length	720 mm	960 mm	1200 mm
	Heater Capacity	12 kw	16 kw	20 kw
	Thermo Control	4 points	4 points	5 points
Cooling Device	Type	Cooling Water in Stainless Steel Tank with Water Circulation System
Cooling Device	Chiller	10 RT	15 RT	20 RT
Take-Up Unit	Drive Motor	3 HP	5 HP	5 HP
	Take-Up Roller	ø215 x 900 mm x 1 pc	ø215 x 1100 mm x 1 pc	ø215 x 1300 mm x 1 pc
	Pressure Roller	ø200 x 900 mm x 1 pc	ø200 x 1100 mm x 1 pc	ø200 x 1300 mm x 1 pc
	Pressure Roller	ø155 x 900 mm x 4 pcs	ø155 x 1100 mm x 4 pcs	ø155 x 1300 mm x 4 pcs
	Suction Blower	1/2 HP	1 HP	1 HP
Slitting Unit	Drive Motor	3 HP	5 HP	5 HP
	Slitting Knife	6-Station Slitting Knife
	Take-Off Roller	ø295 x 800 mm x 2 pcs	ø295 x 1000 mm x 2 pcs	ø295 x 1250 mm x 2 pcs
	Pneumatic Roller	ø155 x 750 mm x 1 pc	ø155 x 950 mm x 1 pc	ø155 x 1200 mm x 1 pc
	Waste Edge Recycling Unit	Crusher Motor:1 HP, Conveying Blower:2 HP, Feeding Motor:1/2 HP
Hot Air Stretching Device	Oven Size	800W x 4000L mm	1000W x 4000L mm	1250W x 4000L mm
	Circulation Blower	2 HP	3 HP	5 HP
	Heater Capacity	40 kw	50 kw	60 kw
	Thermo Control	2 points	2 points	2 points
Take-Off Unit	Drive Motor	15 HP	15 HP	20 HP
	Take-Off Roller	ø295 x 800 mm x 5 pcs	ø295 x 1000 mm x 5 pcs	ø295 x 1250 mm x 5 pcs
	Pneumatic Roller	ø155 x 750 mm x 1 pc	ø155 x 950 mm x 1 pc	ø155 x 1200 mm x 1 pc
Winding Unit	Tape Tension Control	Magnetic Disk Type
	Spindles No.	120 pcs	160 pcs	200 pcs
	Drive Motor	1/4 HP x 120 pcs	1/4 HP x 160 pcs	1/4 HP x 200 pcs
	Traverse Length	200 mm
	Bobbin Size	ø35(ID) x 230 mm
Waste Yarn Collector	Suction Nozzle	2 sets
	Suction Blower	15 HP
	Waste Collection Box	1 set
※All specifications are subject to change without notice.
