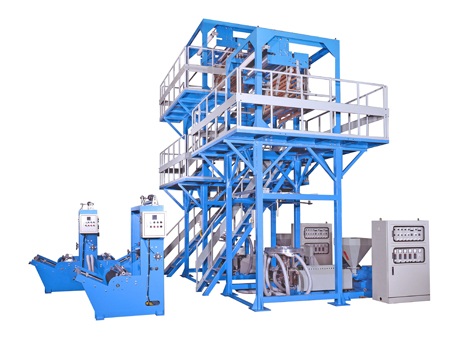

LLDPE/LDPE Blown Film Machine
Model: SC-BF
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Inflation Tubular Film Making Machines
Characteristics
Control Panel
Extruder
Blown Film Die
Air Ring
Take-Up Unit
Single-Side Surface Friction Winding Unit
Specifications
http://www.sanchyi.com/products-category1-1.php?id=8
LLDPE/LDPE Blown Film Machine(SC-BF) | |||||
Model | SC-BF45 | SC-BF55 | SC-BF65 | SC-BF85 | |
Feature | Applicable Material | LLDPE / LDPE | |||
Film Thickness | 0.01 - 0.25 mm | ||||
Double Flat Working Width | 650 mm | 900 mm | 1400 mm | 2000 mm | |
Max. Extrusion Output | 50 kg/hr | 90 kg/hr | 120 kg/hr | 180 kg/hr | |
Max. Operating speed | 50 m/min | ||||
Extruder | Screw Dia. | ø45 mm | ø55 mm | ø65 mm | ø85 mm |
Screw L/D | 30:1 | ||||
Screw Material | SACM645 Alloy Steel with Nitriding and Polishing Treatment | ||||
Barrel Material | SACM645 Alloy Steel with Nitriding and Honing Treatment | ||||
Drive Motor | 20 HP | 40 HP | 50 HP | 100 HP | |
Heater Capacity | 20 kw | 25 kw | 35 kw | 55 kw | |
Thermo Control | 5 points | 6 points | 7 points | 8 points | |
Barrel Cooling Blower | 1/4 HP x 2 pcs | 1/2 HP x 2 pcs | 1/2 HP x 3 pcs | 1/2 HP x 4 pcs | |
Blown Film Die | Size | ø150 mm | ø250 mm | ø300 mm | ø500 mm |
Air Ring | 1 set | ||||
Air Ring Blower | 3 HP | 5 HP | 7.5 HP | 10 HP | |
Take-Up Unit | Type | Height Fixed Type | |||
Drive Motor | 1 HP | 1 HP | 2 HP | 3 HP | |
Bubble Cage | 1 set | ||||
Top Nip | 1 set | ||||
Take-Up Roller | ø165 × 700 mm | ø165 × 1000 mm | ø215 × 1500 mm | ø215 × 2100 mm | |
Guide Roller | ø100 × 700 mm | ø100 × 1000 mm | ø140 × 1500 mm | ø140 × 2100 mm | |
Guide Motor | 15 kg-cm | 20 kg-cm | 30 kg-cm | 50 kg-cm | |
Winding Unit | Winding Type | Single Side Surface Friction | |||
Drive Motor | 1 HP | 1 HP | 2 HP | 3 HP | |
Winding Roll Dia. | ø800 mm | ø800 mm | ø800 mm | ø800 mm | |
All specifications are subject to change without notice. |
