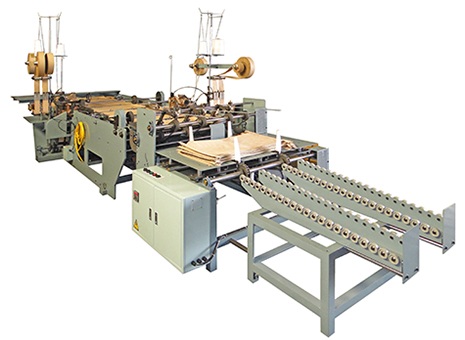

PP-Kraft Paper Cement Bag Manual Double Head Sewing Line
Model: SC-MDS
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Sewing Machines
Characteristics
Sewing Thread and Tape Stand
Tape Folding Device
Double Head Sewing unit(DSM-3/7C)
Automatic Tape Cutter
Counting and Stacking Unit(11C-8)
Air Compressor
Control Panel
Specifications
http://www.sanchyi.com/products-category1-1.php?id=41
| Manual Double Head Sewing Line(SC-MDS) | ||
| Model | SC-MDS-DSM3 | SC-MDS-7C |
| Production Capacity | Max. 50 bags/min | Max. 45 bags/min |
| Tube Length(TL) | 500 - 863 mm | 660 - 1100 mm |
| Tube Width(TW) | 395/420/432 mm(Fixed) | 419 - 545 mm(Adjustable) |
| Gusset Width(GW) | 63 - 127 mm | 76 - 200 mm |
| Ply No. | Max. 6 Plies | Max. 6 Plies |
| Main Drive Motor | 3.75 kw | 5.85 kw |
| Sewing Head | DN-2HS(R) DN-2LHS(L) | |
| Automatic Tape Cutter | NLC(R) NLC-L(L) | |
| Stitch Type | Double Thread Chain Stitch | |
| Stitch Range | 7 – 12 or 16 mm | 7 - 12 mm |
| Air Compressor | 2 HP Air Compressor | |
| ※All specifications are subject to change without notice. | ||
