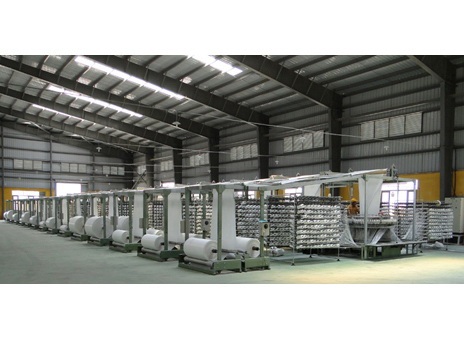

Circular Loom
Model: SC-CLB
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PP/PE Woven Bag Circular Looms
Characteristics
Control Panel
Creel Stands
Weaving Unit
Fabric Surface Winder
Warp Break Detecting Device
Weft Break Detecting Device
Loom Controller
Specifications
http://www.sanchyi.com/products-category1-1.php?id=23
| Circular Loom(SC-CLB) | ||
| Model | SC-CLB6 | |
| Feature | Applicable Yarn | PP/HDPE Tapes(Flat Yarn) |
| Double Flat Working Width | 800 - 1200 mm | |
| Tapes No. | 1200 pcs | |
| Shuttles No. | 6 pcs | |
| Weft Insertion Rate | 570 ppm | |
| Weft Density | 8 - 16 pcs/in | |
| Drive Motor | 7.5 HP | |
| Shedding Type | Driven Directly without Rocking Lever by Cam | |
| Warp Bobbin | Inside Diameter | ø22 / ø35 mm |
| Length | 228 / 230 mm | |
| Max. Diameter | ø140 mm | |
| Traverse Length | 203 / 200 mm | |
| Weft Bobbin | Inside Diameter | ø22 / ø35 mm |
| Length | 228 / 230 mm | |
| Max. Diameter | ø100 mm | |
| Traverse Length | 203 / 200 mm | |
| Fabric Surface Winder | Type | Standard Width Winder for Tubular Fabric |
| Double Width Winder for Central Slitting Fabric | ||
| Back to Back Winder for Double Slitting Fabric | ||
| Winding Motor | 15 kg-cm | |
| Max. Winding Roll Diameter | ø1200 mm | |
| ※All specifications are subject to change without notice. | ||
