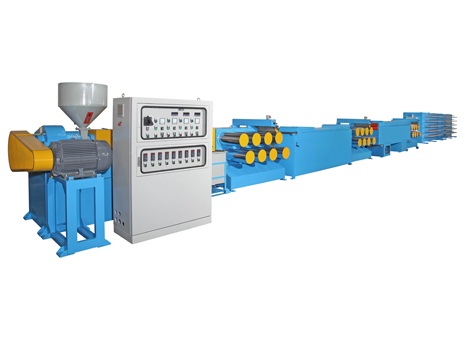

PP/HDPE Monofilament Extrusion Line
Model: SC-MFP
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Monofilament Making Machines
Characteristics
Extruder
Monofilament Die
Control Panel
Cooling Device
Take-off Unit A
Hot Water Stretching Device
Take-off Unit B
Hot Air Annealing Device
Take-off Unit C
Winding Unit
Specifications
http://www.sanchyi.com/products-category1-1.php?id=11
| PP/HDPE Monofilament Extrusion Line(SC-MFP) | ||||||
| Model | SC-MFP55 | SC-MFP65 | SC-MFP75 | SC-MFP85 | SC-MFP100 | |
| Feature | Applicable Material | PP(Polypropylene) / HDPE(High Density Polyethylene) | ||||
| Monofilament Dia. | ø0.15 - 1 mm | |||||
| Max. Extrusion Output | 40 kg/hr | 60 kg/hr | 80 kg/hr | 120 kg/hr | 180 kg/hr | |
| Operating Speed | 30 – 120 m/min | |||||
| Extruder | Screw Dia. | ø55 mm | ø65 mm | ø75 mm | ø85 mm | ø100 mm |
| Screw L/D | 30:1 | |||||
| Screw Material | SACM645 Alloy Steel with Nitriding and Polishing Treatment | |||||
| Barrel Material | SACM645 Alloy Steel with Nitriding and Honing Treatment | |||||
| Drive Motor | 25 HP | 30 HP | 50 HP | 75 HP | 100 HP | |
| Heater Capacity | 20 kw | 30 kw | 35 kw | 40 kw | 50 kw | |
| Thermo Control | 5 points | 6 points | 6 points | 7 points | 7 points | |
| Barrel Cooling Blower | 1/2 HP x 3 pcs | 1/2 HP x 4 pcs | 1/2 HP x 4 pcs | 1/2 HP x 5 pcs | 1/2 HP x 5 pcs | |
| Monofilament Die | Nozzle Holes | 80 holes | 100 holes | 160 holes | 200 holes | 300 holes |
| Cooling Device | Type | Cooling Water in Stainless Steel Tank with Height Adjustment Device | ||||
| Take-off Unit A | Drive Motor | 3 HP | 5 HP | 7.5 HP | 10 HP | 10 HP |
| Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | ø265 x 750L x 8 pcs | ø265 x 900L x 8 pcs | |
| Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | ø150 x 700L x 1 pc | ø150 x 850L x 1 pc | |
| Hot Water Stretching Device | Tank Size | 400W x 3000L mm | 450W x 3000L mm | 600W x 3000L mm | 750W x 3000L mm | 900W x 3000L mm |
| Heater Capacity | 16 kw | 18 kw | 22 kw | 24 kw | 35 kw | |
| Thermo Control | 1 point | 1 point | 1 point | 1 point | 1 point | |
| Take-off Unit B | Drive Motor | 5 HP | 7.5 HP | 10 HP | 15 HP | 20 HP |
| Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | ø265 x 750L x 8 pcs | ø265 x 900L x 8 pcs | |
| Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | ø150 x 700L x 1 pc | ø150 x 850L x 1 pc | |
| Hot Air Annealing Device | Oven Size | 400W x 3000L mm | 450W x 3000L mm | 600W x 3000L mm | 750W x 3000L mm | 900W x 3000L mm |
| Circulation Blower | 2 HP | 2 HP | 2 HP | 2 HP | 3 HP | |
| Heater Capacity | 16 kw | 18 kw | 18 kw | 20 kw | 30 kw | |
| Thermo Control | 2 points | 2 points | 2 points | 2 points | 2 points | |
| Take-off Unit C | Drive Motor | 3 HP | 5 HP | 7.5 HP | 10 HP | 10 HP |
| Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | ø265 x 750L x 8 pcs | ø265 x 900L x 8 pcs | |
| Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | ø150 x 700L x 1 pc | ø150 x 850L x 1 pc | |
| Winding Unit | Winding Type | Flange / Bi-cone / Beam | ||||
| Spindles No. | 85 pcs | 105 pcs | 85 pcs x 2 sets | 105 pcs x 2 sets | 155 pcs x 2 sets | |
| Winding Motor | 2.4 kg-cm x 85 pcs | 2.4 kg-cm x 105 pcs | 2.4 kg-cm x 170 pcs | 2.4 kg-cm x 210 pcs | 2.4 kg-cm x 310 pcs | |
| Traverse Motor | 2 HP Hydraulic Power Unit | 2 HP Hydraulic Power Unit x 2 sets | ||||
| ※All specifications are subject to change without notice. | ||||||
