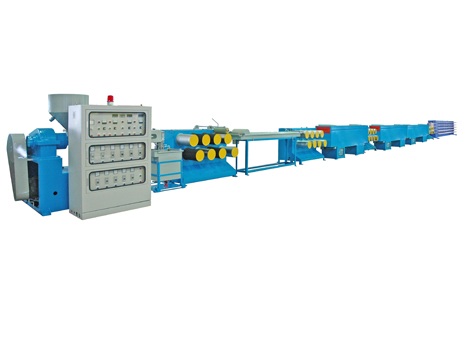

PA/PET Monofilament Extrusion Line
Model: SC-MFN
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Monofilament Making Machines
Characteristics
Extruder
Extrusion Gear Pump
Monofilament Die
Control Panel
Cooling Device
Take-off Unit A
Hot Water Stretching Device
Take-off Unit B
Hot Air Stretching Device
Take-off Unit C
Hot Air Annealing Device
Take-off Unit D
Winding Unit
Specifications
http://www.sanchyi.com/products-category1-1.php?id=12
PA/PET Monofilament Extrusion Line(SC-MFN) | ||||
Model | SC-MFN55 | SC-MFN65 | SC-MFN80 | |
Feature | Applicable Material | PA(Polyamide) / PET(Polyester) | ||
Monofilament Dia. | ø0.1 - 2 mm | |||
Max. Extrusion Output | 40 kg/hr | 60 kg/hr | 80 kg/hr | |
Operating Speed | 30 - 120 m/min | |||
Extruder | Screw Dia. | ø55 mm | ø65 mm | ø85 mm |
Screw L/D | 30:1 | |||
Screw Material | SACM645 Alloy Steel with Nitriding and Polishing Treatment | |||
Barrel Material | SACM645 Alloy Steel with Nitriding and Honing Treatment | |||
Drive Motor | 25 HP | 30 HP | 50 HP | |
Heater Capacity | 20 kw | 25 kw | 35 kw | |
Thermo Control | 6 points | 7 points | 7 points | |
Barrel Cooling Blower | 1/2 HP x 3 pcs | 1/2 HP x 4 pcs | 1/2 HP x 4 pcs | |
Monofilament Die | Nozzle Holes | 80 holes | 100 holes | 160 holes |
Extrusion Gear Pump | 20 cc | 30 cc | 40 cc | |
Gear Pump Drive Motor | 2 HP | 3 HP | 5 HP | |
Melt Pressure Gauge | 2 sets | 2 sets | 2 sets | |
Cooling Device | Type | Cooling Water in Stainless Steel Tank with Height Adjustment Device | ||
Take-off Unit A | Drive Motor | 3 HP | 5 HP | 7 1/2 HP |
Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | |
Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | |
Hot Water Stretching Device | Tank Size | 400W x 3000L mm | 450W x 3000L mm | 600W x 3000L mm |
Heater Capacity | 16 kw | 18 kw | 22 kw | |
Thermo Control | 1 point | 1 point | 1 point | |
Take-off Unit B | Drive Motor | 5 HP | 7 1/2 HP | 10 HP |
Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | |
Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | |
Hot Air Stretching Device | Oven Size | 400W x 3000L mm | 450W x 3000L mm | 600W x 3000L mm |
Circulation Blower | 2 HP Blower | 2 HP Blower | 2 HP Blower | |
Heater Capacity | 16 kw | 18 kw | 20 kw | |
Thermo Control | 2 points | 2 points | 2 points | |
Take-off Unit C | Drive Motor | 7 1/2 HP | 10 HP | 15 HP |
Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | |
Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | |
Hot Air Annealing Device | Oven Size | 400W x 3000L mm x 2 sets | 450W x 3000L mm x 2 sets | 600W x 3000L mm x 2 sets |
Circulation Blower | 2 HP Blower x 2 sets | 2 HP Blower x 2 sets | 2 HP Blower x 2 sets | |
Heater Capacity | 16 kw x 2 sets | 18 kw x 2 sets | 20 kw x 2 sets | |
Thermo Control | 2 points x 2 sets | 2 points x 2 sets | 2 points x 2 sets | |
Take-off Unit D | Drive Motor | 3 HP | 5 HP | 7 1/2 HP |
Take-Off Roller | ø265 x 400L x 8 pcs | ø265 x 450L x 8 pcs | ø265 x 600L x 8 pcs | |
Pneumatic Roller | ø150 x 350L x 1 pc | ø150 x 400L x 1 pc | ø150 x 550L x 1 pc | |
Winding Unit | Winding Type | Flange / Bi-cone / Beam | ||
Spindles No. | 85 pcs | 105 pcs | 85 pcs x 2 sets | |
Winding Motor | 2.4 kg-cm x 85 pcs | 2.4 kg-cm x 105 pcs | 2.4 kg-cm x 170 pcs | |
Traverse Motor | 2 HP Hydraulic Power Unit x 1 set | 2 HP Hydraulic Power Unit x 2 sets | ||
All specifications are subject to change without notice. |
