Model: SC-RPM

Unwinding Unit
Edge Position Control
Printing Unit
Hot Air Drying Device
Winding Unit
Crane Hanger

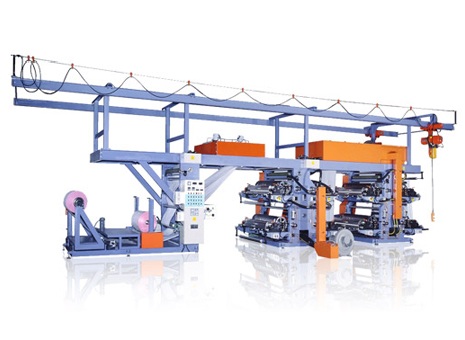

Roll to Roll Printing Machine(SC-RPM)
Model	SC-RPM4C	SC-RPM6C	SC-RPM8C	SC-RPM12C
Color No.	4 colors	6 colors	8 colors	12 colors
Double Side Printing	1+3 / 2+2 / 4+0	1+5 / 2+4 / 3+3 / 6+0	1+7 / 2+6 / 3+5 / 4+4 / 8+0	6+6
Max. Fabric Width	800 mm
Max. Printing Width	800 mm
Printing Repeat Length	600 - 1300 mm
Max. Operating Speed	70 m/min		60 m/min
Unwinding Tension Control	10 kg Magnetic Brake Automatic Tension System
Unwinding Position Control	Edge Position Control x 1 set
Main Drive Motor	5 HP	7.5 HP	10 HP	15 HP
Ink Roller Drive Motor	1 HP
Printing Position	Adjustable Horizontal and Vertical Position
Drying Heater Capacity	1.8 kw x 13 pcs		1.8 kw x 28 pcs
Drying Blower	1/2 HP x 1 set, 5 HP x 1 set		5 HP x 2 sets
Cooling Fan	X		1/2 HP
Winding Motor	2 HP
Hitachi Auto Hanger	1/2 HP x 1 set, 1/4 HP x 1 set
Electric Consumption	28 kw	35 kw	56 kw	59 kw
Dimension	8200 x 2200 x 3250 mm	8200 x 2200 x 3850 mm	12000 x 2200 x 3900 mm	12000 x 2200 x 3900 mm
Weight	6700 kg	8200 kg	9500 kg	13500 kg
※All specifications are subject to change without notice.
