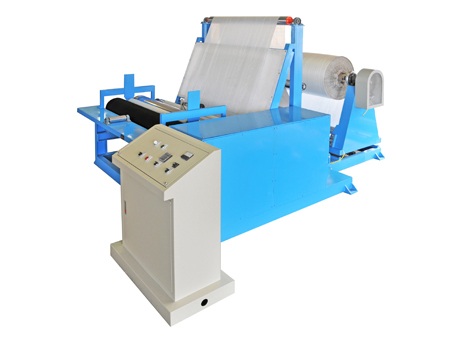

Plastic Woven Fabric Rewinder
Model: SC-RW
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines
Characteristics
Central Unwinding Unit
Manual Tension Control Device
Edge Position Control System(E.P.C.)
Surface Friction Rewinding Unit
Bottom Illuminated Screen
Length Counter
Specifications
http://www.sanchyi.com/products-category1-1.php?id=21
Plastic Fabric Rewinder(SC-RW) | |||||
Model | SC-RW1500 | SC-RW2000 | SC-RW2850 | SC-RW4400 | |
Feature | Applicable Material | Plastic Fabric / PP Woven Fabric / HDPE Tarpaulin | |||
Max. Working Width | 1300 mm | 1800 mm | 2600 mm | 4000 mm | |
Max. Operation Speed | 75 m/min | ||||
Fabric Roll Unwinding Unit | Type | Central Unwinding | |||
Max. Fabric Roll Width | 1300 mm | 1800 mm | 2600 mm | 4000 mm | |
Max. Fabric Roll Dia. | ø1200 mm | ||||
Roll Holding Type | Air Shafts and Safety Chucks | ||||
Tension Control | Manual Pneumatic Disc Brake | ||||
Position Control | Edge Position Control System | ||||
Small Roll Rewinding Unit | Type | Surface Friction Winding | |||
Max. Rewinding Dia. | ø300 mm | ||||
Drive Motor | 5 HP | 7.5 HP | 10 HP | 15 HP | |
Length Counter | 1 set | ||||
Inspection Device | Bottom Illuminated Screen | ||||
All specifications are subject to change without notice. |
