Model: SC-BFE

Control Panel
Extruder
Blown Film Die
Take-Up Unit
Single-Side Surface Friction Winding Unit

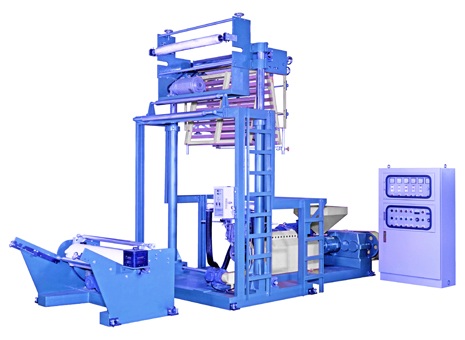

LLDPE/LDPE/HDPE Blown Film Machine(SC-BFE)
Model		SC-BFE45	SC-BFE50	SC-BFE55	SC-BFE65
Feature	Applicable Material	LLDPE / LDPE / HDPE
	LLDPE/LDPE Film Thickness	0.01 - 0.25 mm
	HDPE Film Thickness	0.01 - 0.1 mm
	Double Flat Working Width	650 mm	800 mm	900 mm	1400 mm
	LDPE Max. Extrusion Output	30 - 50 kg/hr	40 - 60 kg/hr	50 - 70 kg/hr	80 - 100 kg/hr
	HDPE Max. Extrusion Output	20 - 40 kg/hr	30 - 50 kg/hr	40 - 60 kg/hr	60 - 80 kg/hr
	Max. Operating speed	50 m/min
Extruder	Screw Dia.	ø45 mm	ø50 mm	ø55 mm	ø65 mm
	Screw L/D	26:1
	Screw Material	SACM645 Alloy Steel with Nitriding and Polishing Treatment
	Barrel Material	SACM645 Alloy Steel with Nitriding and Honing Treatment
	Drive Motor	20 HP	25 HP	30 HP	40 HP
	Heater Capacity	10 kw	13 kw	15 kw	18 kw
	Thermo Control	5 points	5 points	5 points	6 points
Blown Film Die	LDPE Size	ø150 mm	ø200 mm	ø250 mm	ø400 mm
	HDPE Size	ø60 mm	ø70 mm	ø100 mm	ø150 mm
	Air Ring	1 set
	Air Ring Blower	2 HP	3 HP	3 HP	5 HP
Take-Up Unit	Type	Height Adjustable Type
	Drive Motor	1 HP	1 HP	1 HP	2 HP
	Top Nip	1 set
	Take-Up Roller	ø165 × 700 mm	ø165 × 850 mm	ø165 × 1000 mm	ø165 × 1500 mm
Winding Unit	Winding Type	Single Side Surface Friction
	Drive Motor	30 kg-cm	30 kg-cm	40 kg-cm	40 kg-cm
	Winding Roll Dia.	ø800 mm	ø800 mm	ø800 mm	ø800 mm
※All specifications are subject to change without notice.
