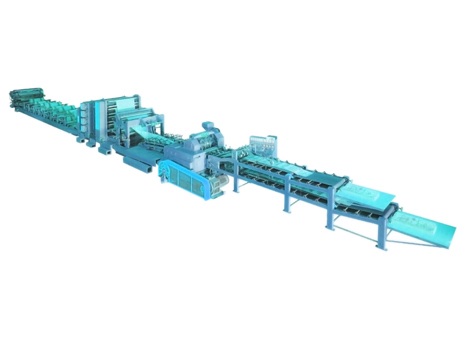

PP-Kraft Paper Cement Bag Tubing and Cutting Line
Model: SC-MP
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Other Plastic Processing Machines
Characteristics
PP-Paper Roll Stand
Printing Unit
Paper Roll Stands
Cross Pasting Unit
Paper Pasting Unit
Tube Forming Unit
Extruder
Rotary Cutting Unit
Conveyor Unit
Control Panel
Specifications
http://www.sanchyi.com/products-category1-1.php?id=27
| PP-Paper Bag Tubing and Cutting Line(SC-MP) | |||
| Model | SC-26MP | SC-15MP | |
| Feature | Tube Material | PP Woven Fabric Laminated Kraft Paper + Multi-Layer Kraft Paper | |
| Tube Mouth Type | Flat Open Mouth / Gusset Open Mouth / Gusset Valve Notch-Cut | ||
| Max. Production Capacity | 160 tubes/min | 250 tubes/min | |
| Gusseted Tube Width(TW) | 368 - 495 mm | 368 - 495 mm | |
| Flat Tube Width(TW) | 368 - 597 mm | 368 - 597 mm | |
| Cutting Length(CL) | 508 - 1092 mm | 508 - 1092 mm | |
| Gusset Width(GW) | 63 - 152 mm | 50 - 152 mm | |
| Valve Extension Height(VH) | 25 - 63 mm | 25 - 51 mm | |
| Valve Extension Width(VW) | 57 - 76 mm | 57 - 76 mm | |
| Max. Ply No. | 6 Plies | 6 Plies | |
| PP-Paper Roll Stand | Max. PP-Paper Roll Dia. | ø1300 mm | ø1000 mm |
| Max. PP-Paper Roll Width | 1220 mm | 1220 mm | |
| Unwinding Tension Control | Magnetic Brake Automatic Tension System | ||
| Unwinding Position Control | 1/2 HP Edge Position Control x 1 set | ||
| Printing Unit | Printing Color No. | 1 - 4 colors | 1 - 4 colors |
| Printing Drive Motor | 1/2HP x 4 sets | 1/2HP x 4 sets | |
| Printing Circulation Pump | 1/8 HP x 4 sets | 1/8 HP x 4 sets | |
| Paper Roll Stands | Stand No. | 5 sets | 5 sets |
| Max. Paper Roll Dia. | ø1300 mm | ø1000 mm | |
| Max. Paper Roll Width | 1220 mm | 1220 mm | |
| Cross Pasting Unit | Pasting Pump | 1/2 HP | 1/2 HP |
| Paper Pasting Unit | Pasting Pump | 1/2 HP | 1/2 HP |
| Tube Forming Unit | Main Drive Motor | 20 HP | 25 HP |
| Gusseting Device | Adjustable Gusseting Width | ||
| Extruder | Screw Dia. | ø45 mm | ø45 mm |
| Screw L/D | 28:1 | 28:1 | |
| Extrusion Output | 10 - 35 kg/hr | 10 - 35 kg/hr | |
| Thermo Control | 6 points | 6 points | |
| Heating Capacity | 9.4 kw | 9.4 kw | |
| Rotary Cutting Unit | Cutting Type | Flush-Cut | Flush-Cut |
| Notch-Cut | Notch-Cut | ||
| X | Economy Notch-Cut | ||
| Conveyor Unit | Type | Counting Stack Type Belt Conveyor | |
| Drive Motor | 1/2 HP | 1/2 HP | |
| ※All specifications are subject to change without notice. | |||
