PP/HDPE Tape Extrusion Line

Enlarge

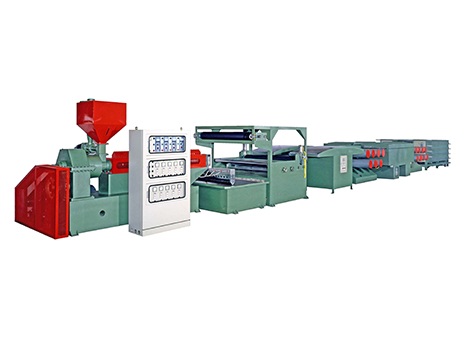

PP/HDPE Tape Extrusion Line

Model: SC-FYE

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Flat Yarn Making Machines

Online Inquiry

Characteristics

Control Panel
Extruder
T-Die
Cooling Device
Take-Up & Slitting Unit
Edge Yarn Recycling Unit
Hot Plate Stretching Device
Take-Off Unit A
Hot Air Annealing Device
Take-Off Unit B
Winding Unit

Specifications

http://www.sanchyi.com/products-category1-1.php?id=13

PP/HDPE Tape Extrusion Line(SC-FYE)
Model		SC-FYE85-160	SC-FYE100-200	SC-FYE120-240
Feature	Applicable Material	PP(Polypropylene) / HDPE(High Density Polyethylene)
	Max. Extrusion Output	80 kg/hr	100 kg/hr	120 kg/hr
	Max. Operating speed	120 m/min
Extruder	Screw Dia.	ø85 mm	ø100 mm	ø120 mm
	Screw L/D	30:1
	Screw Material	SACM645 Alloy Steel with Nitriding and Polishing Treatment
	Barrel Material	SACM645 Alloy Steel with Nitriding and Honing Treatment
	Drive Motor	40 HP	50 HP	60 HP
	Heater Capacity	25 kw	30 kw	35 kw
	Thermo Control	5 points	5 points	6 points
	Automatic Vacuum Loader	Blower:800 w, Loading Capacity:400 kg/hr, Hopper Capacity:12 L
T-Die	T-Die Material	SCM440 Alloy Steel with Grinding and Plating
	T-Die Length	1000 mm	1300 mm	1500 mm
	Heater Capacity	12 kw	14 kw	16 kw
	Thermo Control	4 points	5 points	5 points
Cooling Device	Type	Cooling Water in Stainless Steel Tank with Water Circulation System
Cooling Device	Cooling Tower	10 RT	15 RT	15 RT
Take-Up & Slitting Unit	Drive Motor	2 HP	2 HP	2 HP
	Take-Up Roller	ø165 x 1000 mm x 3 pcs	ø165 x 1300 mm x 3 pcs	ø165 x 1650 mm x 3 pcs
	Pressure Roller	ø200 x 1000 mm x 2 pcs	ø200 x 1300 mm x 2 pcs	ø200 x 1650 mm x 2 pcs
	Guide Roller	ø88 x 1000 mm x 2 pcs	ø88 x 1300 mm x 2 pcs	ø88 x 1650 mm x 2 pcs
	Slitting Knife	2-Station Slitting Knife
	Waste Edge Recycling Unit	Crusher Motor:1 HP, Conveying Blower:2 HP, Feeding Motor:1/2 HP
Hot Plate Stretching Device	Plate Size	1000W x 2600L mm	1300W x 2600L mm	900W x 2600L mm x 2 sets
	Heater Capacity	14 kw	18 kw	12 kw x 2 sets
	Thermo Control	2 points	2 points	2 points x 2 sets
Take-Off Unit A	Drive Motor	5 HP	7.5 HP	10 HP
	Take-Off Roller	ø272 x 1000 mm x 7 pcs	ø272 x 1300 mm x 7 pcs	ø272 x 900 mm x 14 pcs
	Waste Yarn Collecting Roller	ø272 x 1000 mm x 1 pc	ø272 x 1300 mm x 1 pc	ø272 x 900 mm x 2 pcs
Hot Air Annealing Device	Oven Size	1000W x 3000L mm	1300W x 3000L mm	900W x 3000L mm x 2 sets
	Circulation Blower	2 HP	3 HP	2 HP x 2 sets
	Heater Capacity	32 kw	40 kw	30 kw x 2 sets
	Thermo Control	2 points	2 points	2 points x 2 sets
Take-Off Unit B	Drive Motor	3 HP	5 HP	7.5 HP
	Take-Off Roller	ø272 x 1000 mm x 7 pcs	ø272 x 1300 mm x 7 pcs	ø272 x 900 mm x 14 pcs
	Waste Yarn Collecting Roller	ø272 x 1000 mm x 1 pc	ø272 x 1300 mm x 1 pc	ø272 x 900 mm x 2 pcs
Winding Unit	Spindles No.	160 pcs	200 pcs	240 pcs
	Drive Motor	1.2 kg-cm(1/16 HP) x 160 pcs	1.2 kg-cm(1/16 HP) x 200 pcs	1.2 kg-cm(1/16 HP) x 240 pcs
	Traverse Motor	5 HP	7.5 HP	3 HP x 2 sets
	Traverse Length	203 mm
	Bobbin Size	ø22(ID) x 228 mm
※All specifications are subject to change without notice.
