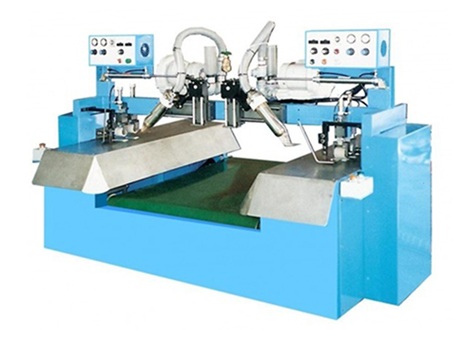

HDPE Tarpaulin Double Head Hot Air Hemming Machine
Model: SC-DH
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Welding Machines
Characteristics
Hot Air Hemming Unit
Rope Insertion Device
Tarpaulin Conveying Unit
Control Panel
Specifications
http://www.sanchyi.com/products-category1-1.php?id=33
| Double Head Hemming Machine(SC-DH) | |
| Model | SC-DH102 |
| Applicable Material | HDPE Tarpaulin |
| Max. Welding Speed | 18 m/min |
| Welding Type | Side Hemming |
| Side Hemming with Rope Insertion | |
| Electric Power | AC 380V / 50Hz |
| Drive Motor | 1 HP |
| Heater Capacity | 5 kw x 2 sets |
| Thermo Control | 2 sets |
| Hot Air Blower | 1/2 HP x 2 sets |
| Max. Welding Temp. | 700 °C |
| Air Compressor | 1 HP |
| Dimension | L132 x W150 x H135 cm |
| Weight | 300 kg |
| ※All specifications are subject to change without notice | |
